Description

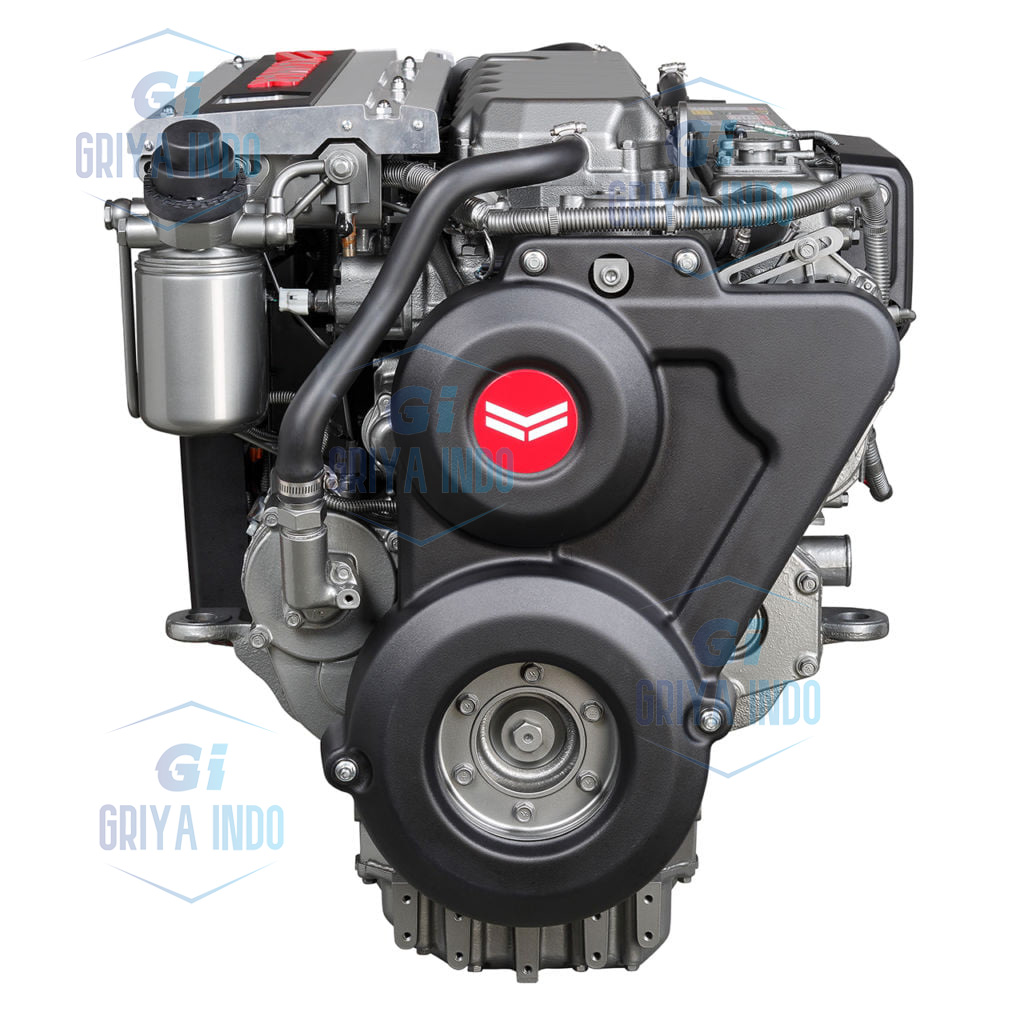

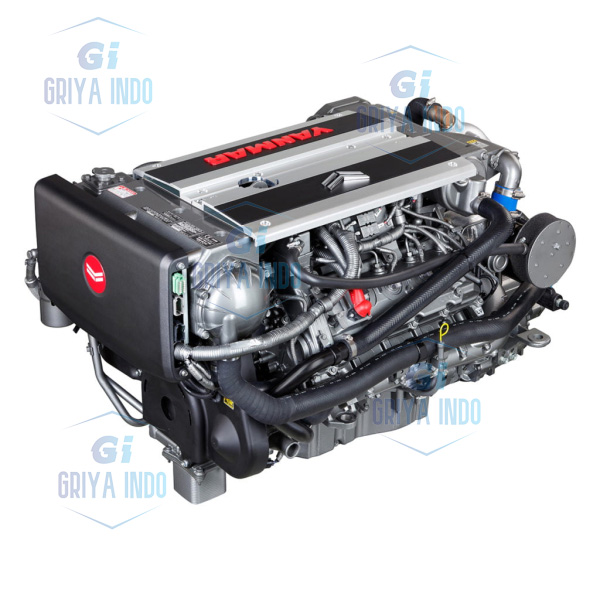

Yanmar 6LY400 Inboard Diesel Marine Engine 6 Cylinder, 5.8-liter diesel engine, Turbocharged, Gears – KMH61A2 / KMH61V2 / ZF280. The new 6LY takes the all the attributes of its foreruers and adds major engineering advances. The beating heart of the engine remains the international powerboat race-wiing compact 5.8 -litre in-line six-cylinder YANMAR engine block that over three decades has cemented its popularity with boat designers, builders and owners who laud its performance, fuel efficiency, reliability and smooth and quiet operation.This latest incarnation has taken the engine into a new era of mechanical and digital sophistication. We have completely re-engineered the fuel induction and aspiration systems – all functions now being managed by state-of-the-art electronic precision for even better all-round performance.

Yanmar 6LY400 Inboard Diesel Marine Engine Specifications

Rated Output : 294 kW / 400 mhp
Rated Speed : 3300 rpm
Displacement : 5.813 L / 354 cu. in
No. of cylinders : 6 cylinders
Cylinder Bore x Stroke : 106 mm x 110 mm / 4.17 in x 4.33 in
Combustion system : Direct Injection, Denso Common Rail System
Aspiration : Turbocharged & Intercooled
Alternator : 12V – 125A
Dry weight without gear : 585 kg / 1290 lbs
Dimensions : 1440 mm x 748.5 mm x 773.8 mm
Controls : Electronic
Certifications : RCD 2, IMO Tier 2, EPA Tier 3, EPA Tier 3C, BSO II, EMC, SOLAS

Standard Engine Package

– Exhaust mixing elbow [L-type]
– Alternator 12V – 120A
– VC10 Vessel Control System
– Fresh water expansion tank

Optional Accessories

– High-riser mixing elbow [instead of L-elbow]
– Flexible mounts Barry
– Flexible mounts Bridgestone
– Secondary alternator 12V – 120A or 24V – 45A
– Extension harness [3m, 5m, 10m]
– Second station
– JC20 Inboard Joystick
– NMEA2000 Engine monitoring system
– SOLAS including Certificate [factory fit only]
– Hot water kit
– Water separator
– Lube oil drain pump
– Bilge pump [12V]
