Description

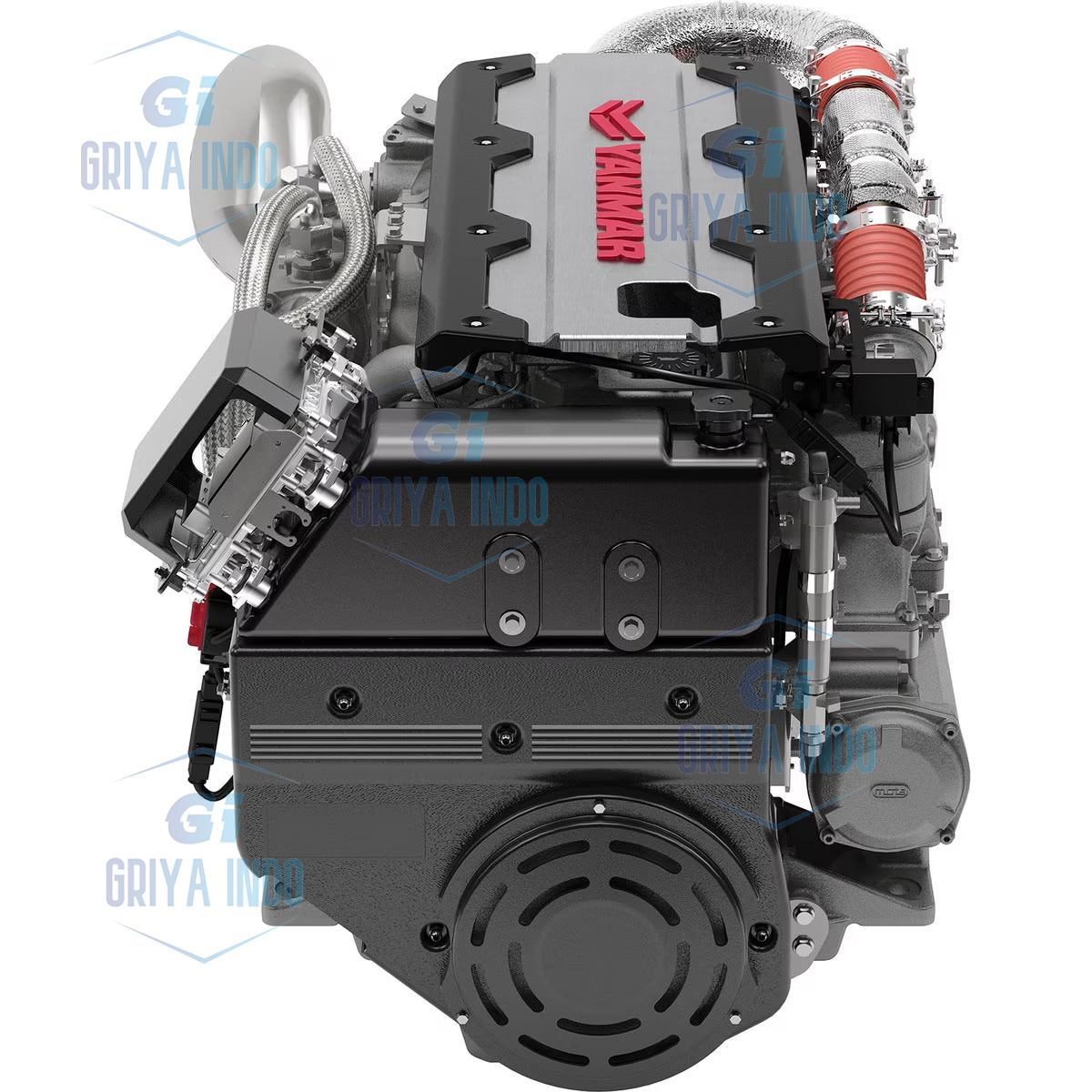

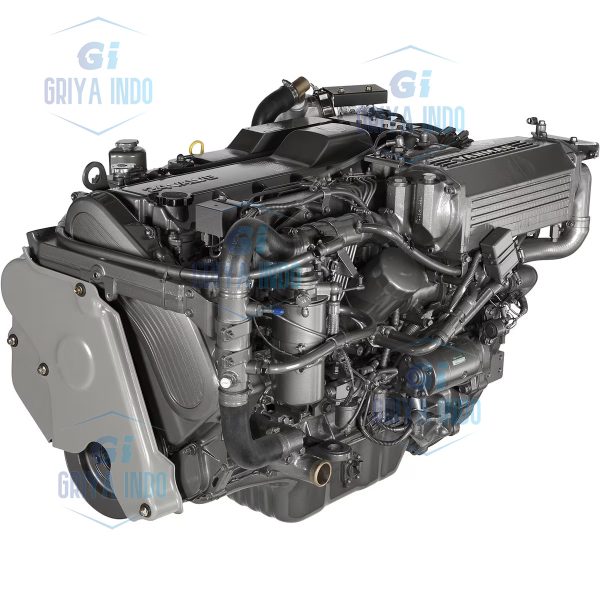

Yanmar 6LPA STP2 Inboard Diesel Marine Engine is incredibly compact and light in weight, considering their high power output and thorough ruggedness. The waste-gated, water-cooled turbo really makes things happen when the throttle is pushed down. There are four valves for each of the six cylinders, allowing enhanced breathing and boosting top-end performance. Enjoy smooth shifting, instant response and abundant torque throughout your engine’s operating range.

Features:

• Turbocharged, intercooled, waste gated
• Big breathing for-valved head
• Go faster, go further and use less fuel

Yanmar 6LPA STP2 Inboard Diesel Marine Engine Specifications:

Rated Output : 232 kW / 315 mhp
Rated Speed : 3800 rpm
Displacement : 4.164 L / 254 cu. in
No. of cylinders : 6 cylinders
Cylinder Bore x Stroke : 94 mm x 100 mm / 3.7 in x 3.94 in
Combustion system : Direct Injection, 2-stage Injection
Aspiration : Turbocharged & Intercooled
Alternator : 12V – 80A
Dry weight without gear : 408 kg / 899 lbs
Dimensions : 1220 mm x 666 mm x 739 mm
Controls : Mechanical
Certifications : RCD 1, IMO Tier 2, EPA Tier 2, BSO II, EMC, SOLAS

Package Includes:

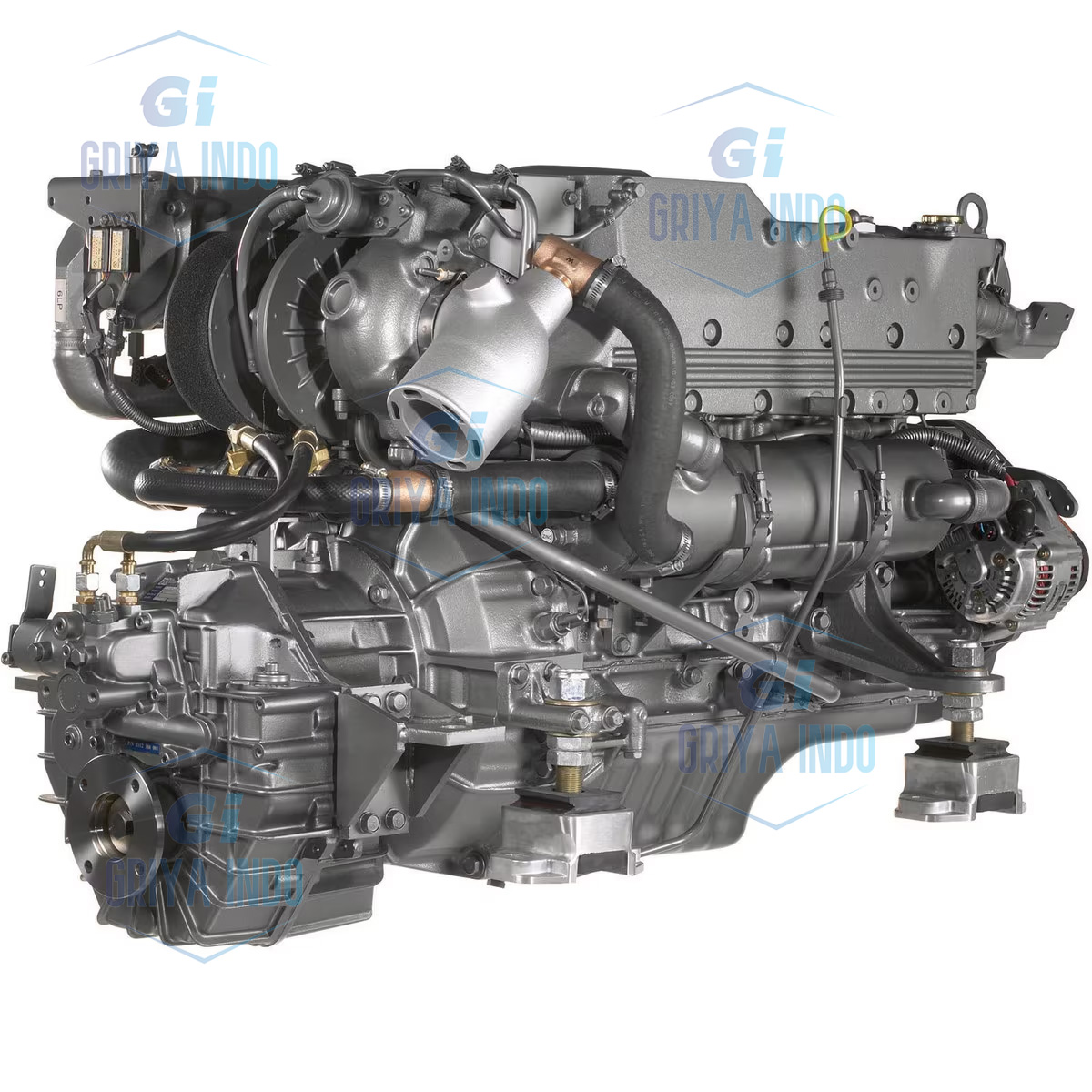

– New Yanmar 6LPA-STP2 engine
– Gearbox: KMH50A / ZF63A
– C-type instrument panel
– Exhaust mixing elbow [L-type]
– Alternator 12V – 80A
– Water separator
– 4x Flexible mounts
– Extension wire harness 10m

Optional Accessories

– High-riser mixing elbow [instead of L-elbow]
– Flexible mounts
– B/C/D-type instrument panel
– Extension wire harness [4m, 6m, 10m]
– Dual harness [for 2nd station]
– Sensor for VDO instrument panels
– SOLAS including Certificate [factory fit only]
– Air venting device for cooling water tank
– Lub oil evacuation pump
