Description

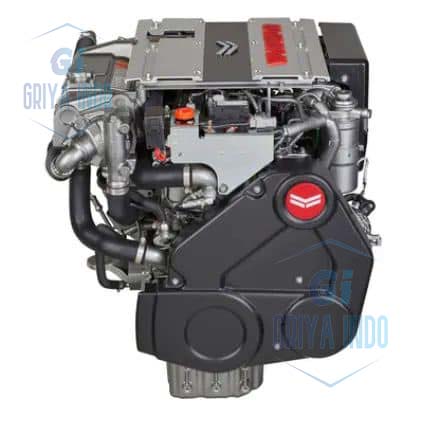

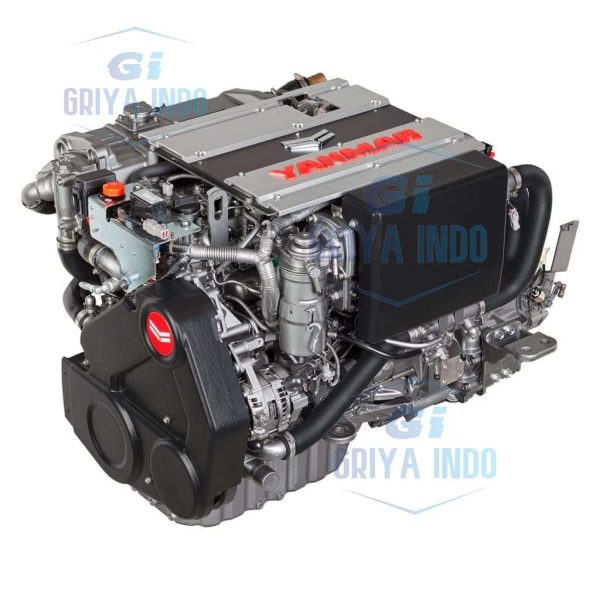

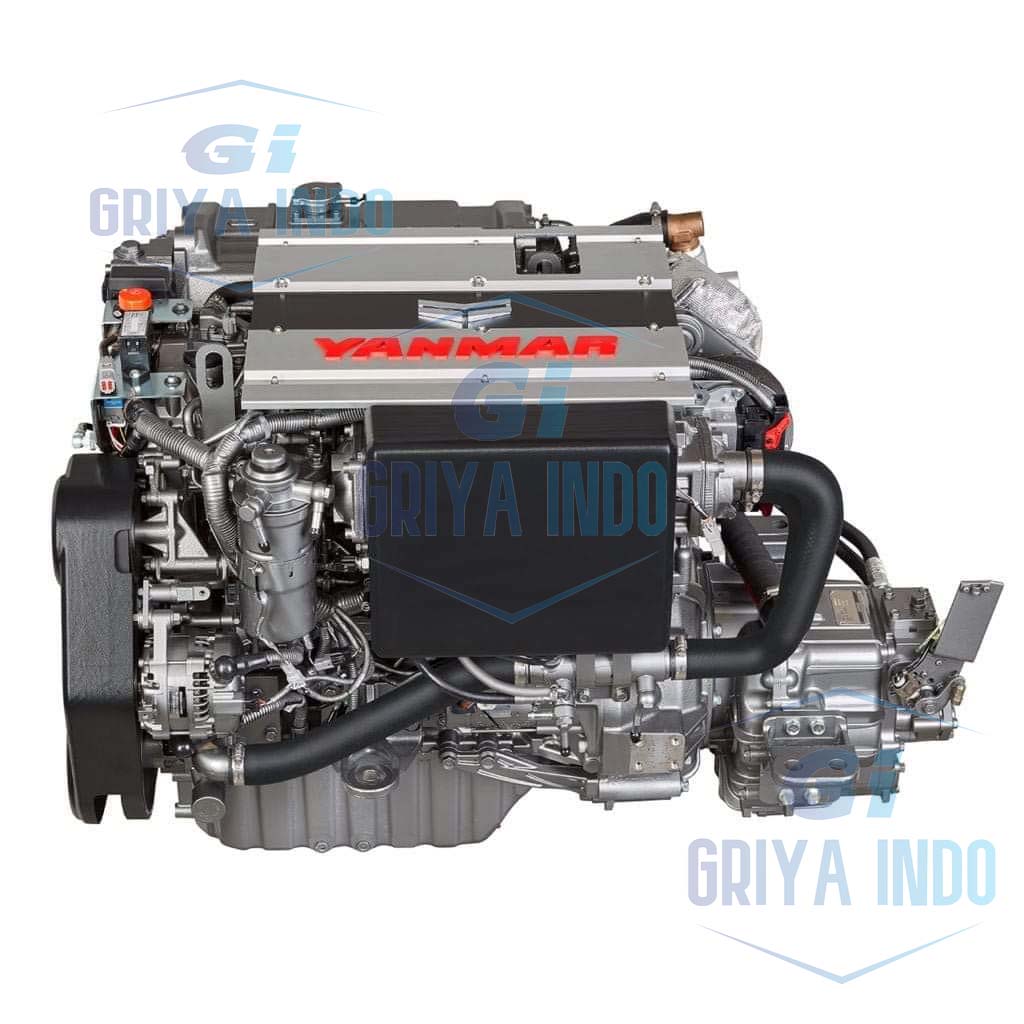

Yanmar 4LV150 Marine Diesel Engine 150 HP Inboard series engine raises the standard for engines in its class, with exceptionally low noise and vibration alongside the 2.8 L displacement delivering powerful low-end torque and stunning acceleration. By exceeding the strict EPA Tier 3 and EU RCD Stage 2 emissions regulations, the engines feature a virtually odour-free and smoke-free operation. Direct connectivity to NMEA and J1939 CAN-bus networks has been purpose engineered into the 4LV range, allowing future-proofed integration to any multifunction bridge display.

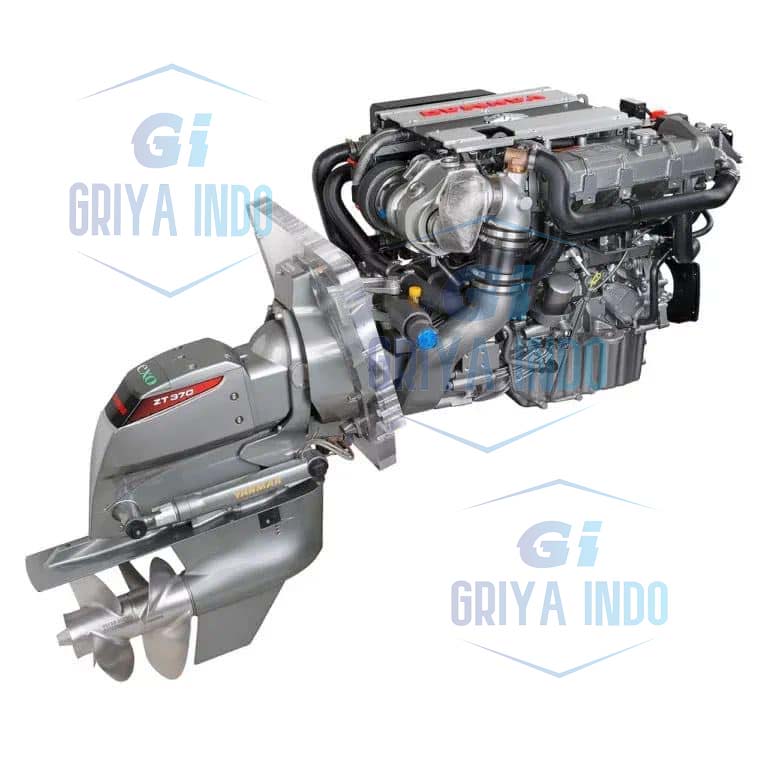

Over and above the impressive performance, the resounding benefit of the 4LV Series remains its versatility, with all models available with multiple shaft and jet drive options and the durable sterndrive. Fulfilling needs across all boating applications, it is the perfect solution for new builds and repowering.

The 4LV is the ideal solution for sailing yachts over 50 ft, super yacht tenders, small motorboats and light duty commercial vessels.

– Specifically designed for sailing yachts over 50 ft, super yacht tenders, small motor boats and light duty commercial vessels
– Powerful low-end torque performance, delivering superior acceleration
– Exceeds EPA Tier 3 & RCD Stage 2 emmissions regulations
– Measures significantly low in smoke, odor, & noise
– Direct connectivity for plug & play integration .

Yanmar 4LV150 Marine Diesel Engine 150 HP Inboard Specifications:

Rated Output : 110 kW / 150 mhp
Rated Speed : 3500 rpm
Displacement : 2.755 L / 168 cu. in
No. of cylinders : 4 cylinders
Cylinder Bore x Stroke : 92 mm x 103.6 mm / 3.6 in x 4 in
Combustion system : Direct Injection, Denso Common Rail System
Aspiration : Turbocharged & Intercooled
Alternator : Denso 12V – 130A
Dry weight without gear : 334 kg / 736 lbs
Dimensions : 1151 mm x 755 mm x 772 mm
Controls : Mechanical (optional – VC10 system)
Certifications : RCD 2, EPA Tier 3, EPA Tier 3C, BSO II, EMC, SOLAS

Standard Engine Package

– Exhaust mixing elbow [L-type]*
– Through drive exhaust**
– Alternator 12V – 130A
– B25 panel*
– VC10 Vessel Control System**
– Power steering**
– Mechanical throttle sensor*
– Flexible mounts
– Fresh water expansion tank

*Inboard model
**Sterndrive model

Optional Accessories

– High-riser mixing elbow [instead of L-elbow]*
– Through hull exhaust**
– Secondary alternator 12V – 130A or 24V – 110A including smart regulator
– Extension harness [3m, 5m, 10m, 20m]
– Second station
– C35 panel*
– Sidemount control head*
– VC10 Vessel Control System*
– JC20 Inboard Joystick*
– JC10 Sterndrive Joystick**
– NMEA2000 Engine monitoring system
– Internal tie-bar
– Semi 2-pole
– SOLAS including Certificate [factory fit only]
– Hot water connection
– Water separator
– Man Over Board Switch (single)
– C-Type trolling (KMH50 only)*
– On-board spare parts kit
