Description

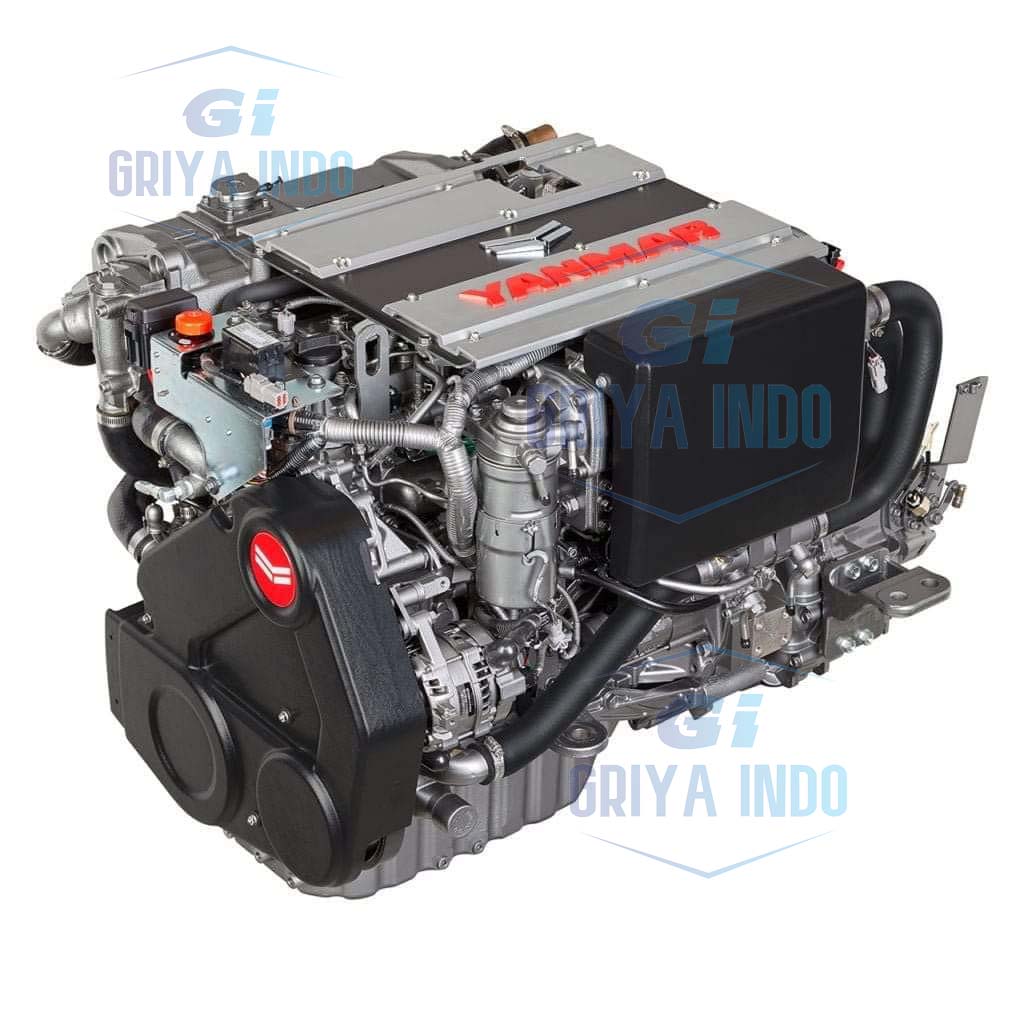

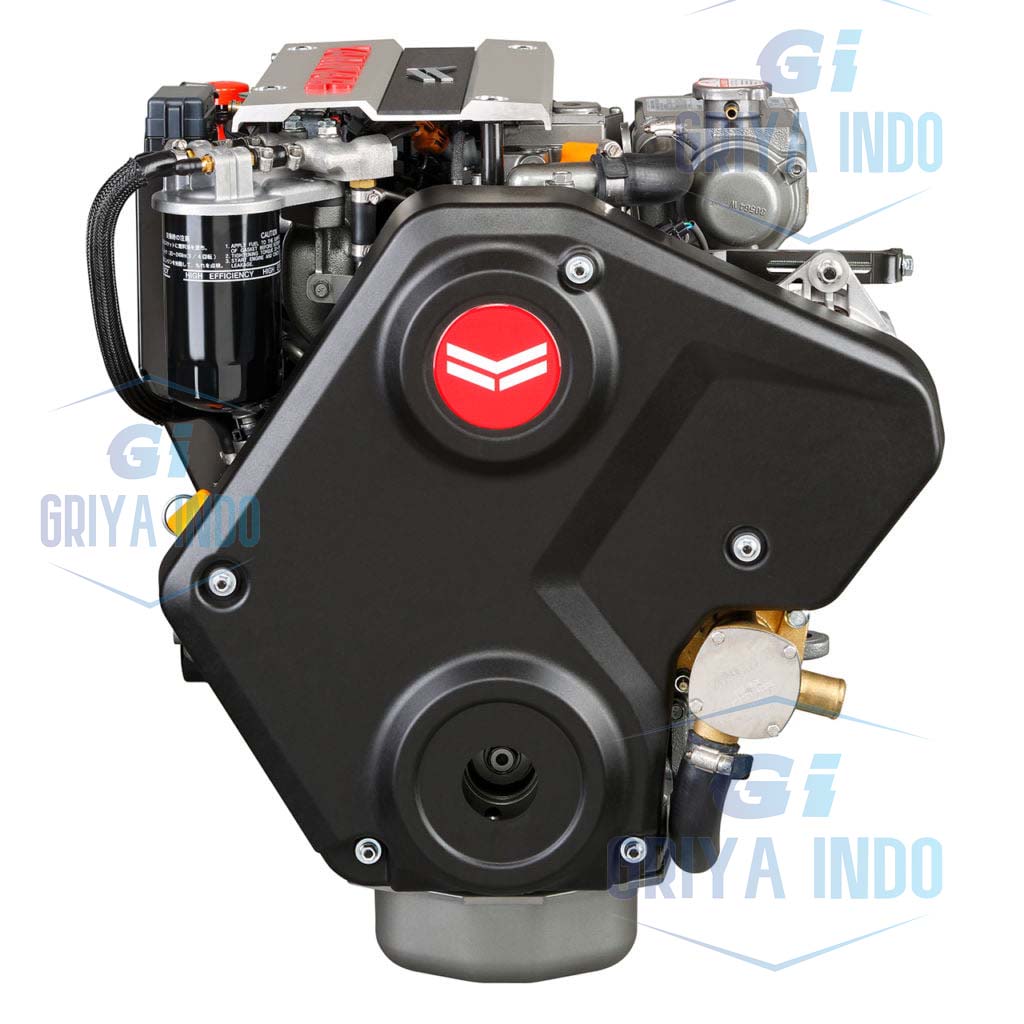

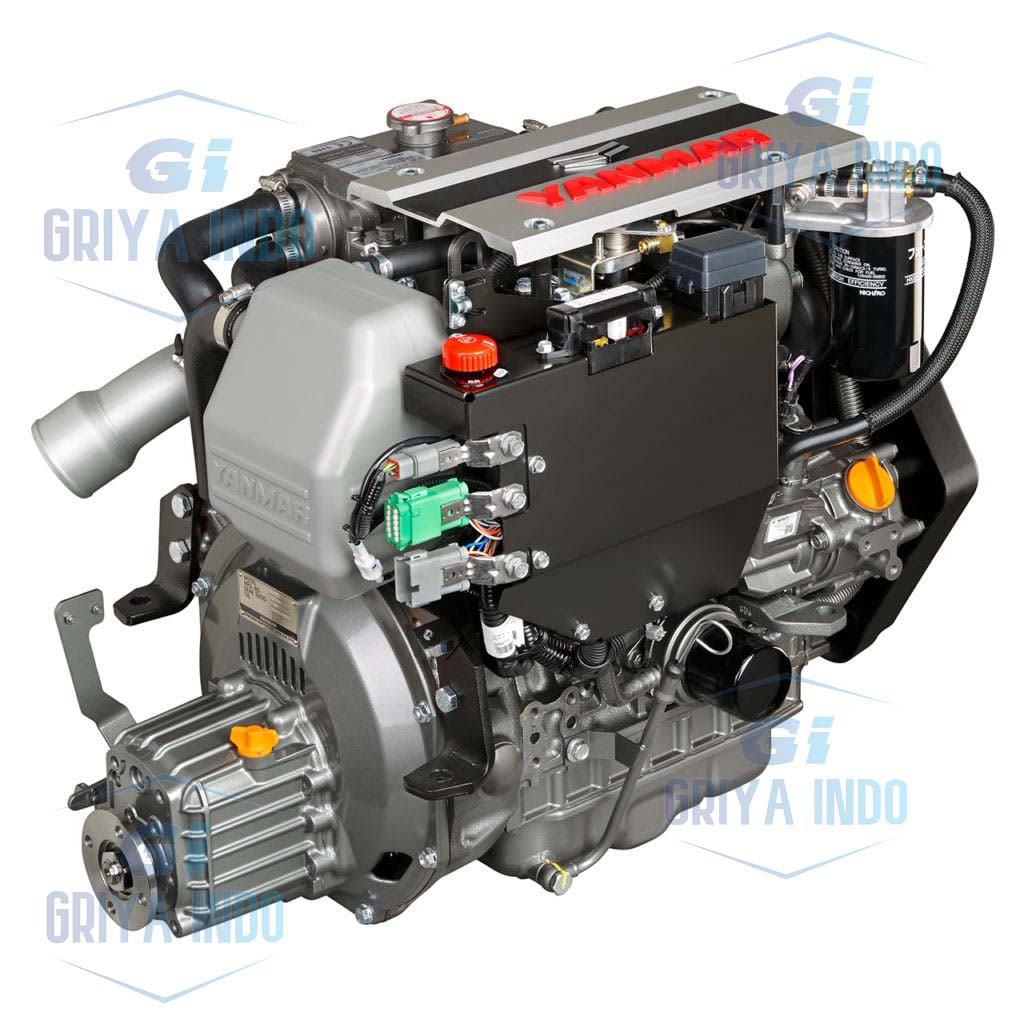

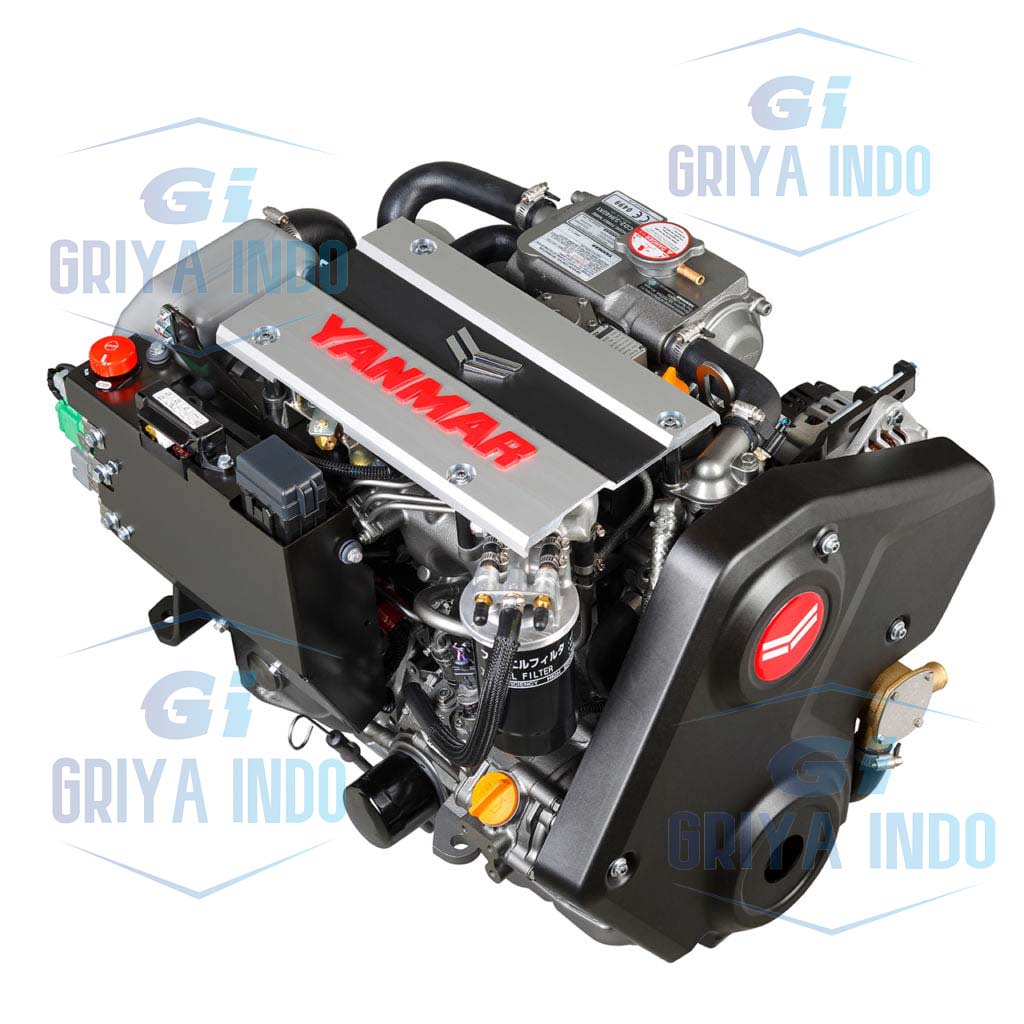

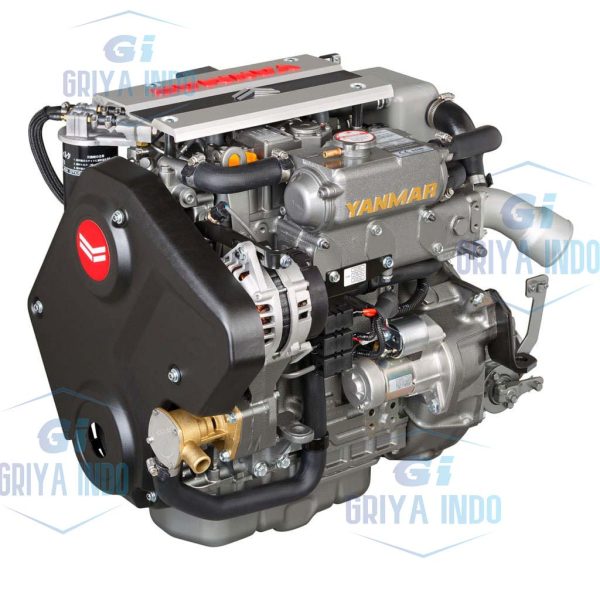

Yanmar 3JH40 Diesel Engine 40 HP Inboard as the world’s smallest common rail inboard marine diesel engine in displacement, dimensions and weight. The 3-cylinder 3JH40, with an output of 40 mhp, will enable a whole new category of smaller leisure boat owners and commercial vessel operators to benefit for the first time from the efficiency and performance advantages associated with the most recent electronically-managed CR fuel-injection technology.
With an output of 40 MHP @ 3000 rpm (29.4 kW @ 3000 rpm), the 3JH40 is the smallest common rail inboard marine diesel in:

Displacement, with only 3 cylinders measuring 1.642 L (100 cu in)

Physical size, measuring 774 x 580 x 632mm

Weight, measuring 192kg without gear

Features

• Genuine YANMAR-based engine featuring a custom-designed common rail system

• Advanced fuel injection technology for sailboats and smaller motorboats and commercial vessels

• Sets the global standard in sailboat and small craft propulsion

• Wide range of power ratings in one model to fit a variety of applications

• Versatile control options with mechanical control as standard and option to upgrade to electronic controls

Yanmar 3JH40 Diesel Engine 40 HP Inboard Specifications:

Rated Output : 29.4 kW / 40 mhp
Rated Speed : 3000 rpm
Displacement : 1.642 L / 100 cu. in
No. of cylinders : 3 cylinders
Cylinder Bore x Stroke : 88 mm x 90 mm / 3.46 in x 3.54 in
Combustion system : Direct Injection, Bosch Common Rail System
Aspiration : Natural
Alternator : 12V – 125A
Dry weight without gear : 192 kg / 423 lbs
Dimensions : 774 mm x 580 mm x 632 mm
Controls : Mechanical (optional – VC10 system)
Certifications : RCD 2, EPA Tier 3, EPA Tier 3C, BSO II, EMC, SOLAS

Standard Engine Package

– Exhaust mixing elbow [L-type]
– Alternator 12V – 125A
– B25 panel
– Flexible mounts
– Mechanical throttle sensor
– Fuel pre-filter with water separator
– Fresh water expansion tank
– Belt safety cover

Optional Accessories

– High-riser mixing elbow [instead of L-elbow]
– Secondary alternator 12V – 125A or 24V – 60A
– C35 panel
– Extension harness [3m, 5m, 10m]
– Second station
– TFX Sidemount control head
– VC10 Vessel Control System
– NMEA2000 Engine monitoring system
– Semi 2-pole
– SOLAS including Certificate [factory fit only]
– Hot water kit with cocks
– Extension saildrive leg [75 mm]
– Propeller cone nut kit SD60
– On-board spare parts kit

Factory Warranty:5 Years
